سلول باتری پلیمر لیتیوم

Power Batteries 501530 200mAh 3.7v 0.74wh Small Rechargeable Solar Lipo Lithium Battery Cell

تمام دسته ها

لوازم RC

با ما تماس بگیرید

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

حالا تماس بگیرید

Power Batteries 501530 200mAh 3.7v 0.74wh Small Rechargeable Solar Lipo Lithium Battery Cell

نام تجاری:	RESKY
شماره مدل:	LP501530
مقدار تولیدی:	100 عدد
قیمت:	قابل مذاکره
جزئیات بسته بندی:	جعبه کاغذی
شرایط پرداخت:	T/T، وسترن یونیون

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

گواهی:

MSDS, Un38.3

مدل شماره:

LP501530

ظرفیت:

200 میلی آمپر ساعت

100 عدد

الکترولیت:

لی (nicomn) o2

چرخه زندگی:

500cycles

گارانتی:

12 ماه

حمل و نقل:

UPS ، DHL ، FedEx ، TNT ، توسط هوا ، توسط دریا ، خط ویژه

زمان سرب:

در 5-7 کار روز

رابط:

Jst، Molex ....

مشخصات:

5*15*30 میلی متر

قابلیت ارائه:

50000pcs/dat

برجسته کردن:

501530 rechargeable lithium battery,3.7v solar lipo battery,200mAh small lithium cell

3.7v solar lipo battery

200mAh small lithium cell

توضیحات محصول

Power Batteries 501530 200mAh 3.7v 0.74wh Small Rechargeable Solar Lipo Lithium Battery Cell

Compact, high-performance lithium polymer battery designed for space-constrained applications requiring reliable power and long cycle life.

Technical Specifications

Item	Specifications
Battery Type	3.7V 200mAh LiPo battery
Charge Voltage	4.2V
Nominal Voltage	3.7V
Nominal Capacity	200mAh @ 0.2C Discharge
Charge Current	Standard Charging: 0.2C Rapid charge: 1.0C
Standard Charging Method	0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
Charging Time	Standard: 2.75 hours (Ref.) Rapid: 2 hours (Ref.)
Max. Charge Current	0.5C
Max. Discharge Current	1.0C
Discharge Cut-off Voltage	2.5V±0.25V (0.2C)
Operating Temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
Storage Temperature	-10°C ~ +45°C
Dimensions	Length: 30±0.5mm Width: 15±0.5mm Thickness: 5±0.2mm
Drop Test	Dropped from 1m height twice onto concrete - no fire, no leakage
Cycle Life	≥500 cycles

Key Advantages

High Energy Density

Greater capacity within the same volume compared to traditional nickel-cadmium or nickel-metal hydride batteries, ideal for weight- and space-sensitive applications.

Safe and Reliable

Flexible packaging design with external deformation detection prevents explosion risks and ensures operational safety.

Long Cycle Life

Over 500 cycles under normal charge/discharge conditions with low internal resistance and stable discharge performance.

Fast Charging

Supports rapid charging technology with full charge achieved in 1-2 hours using 4.2V constant current constant voltage charger.

Environmentally Friendly

Free of harmful substances such as lead and mercury, meeting stringent environmental standards.

Applications

Consumer Electronics

Suitable for small devices including Bluetooth headsets, smartwatches, and portable speakers due to slim design and high capacity.

Medical Devices

Used in portable medical instruments such as blood glucose meters and blood pressure monitors, relying on safety and long lifespan.

Industrial Applications

Power source for sensors, remote controls, and small drones, benefiting from stable discharge and vibration resistance.

Custom Solutions

Flexible dimensions allow adaptation to specific device designs, making it suitable for customized battery requirements.

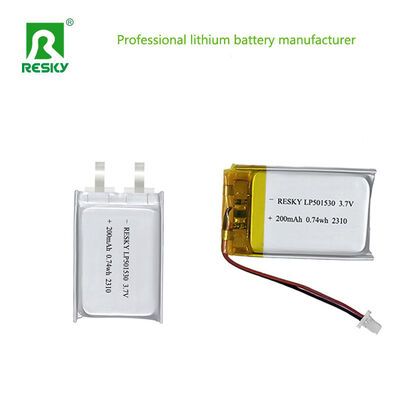

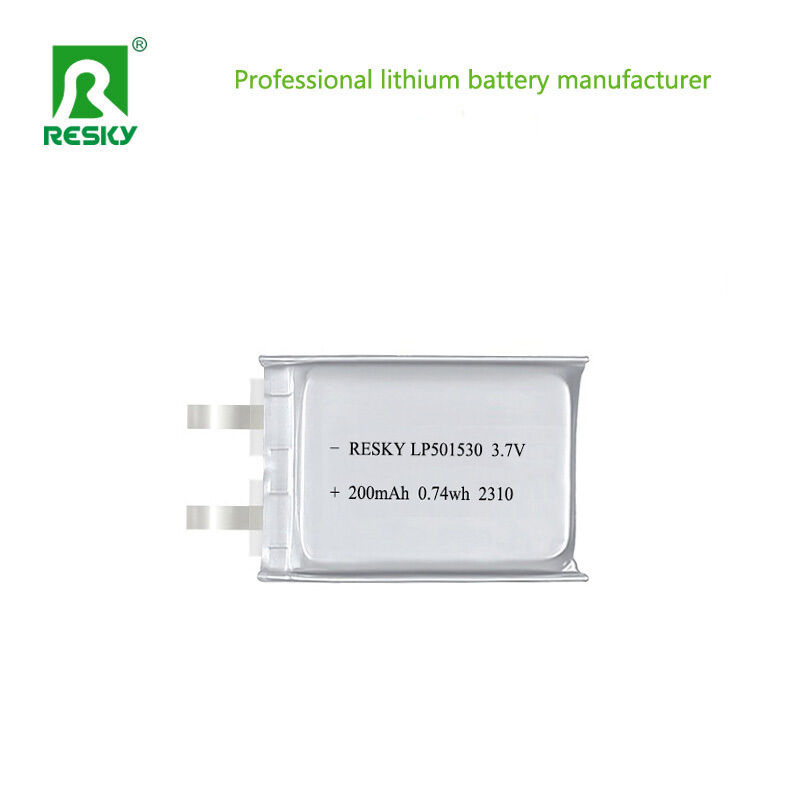

Product Images
