بسته باتری لیتیوم پلیمری

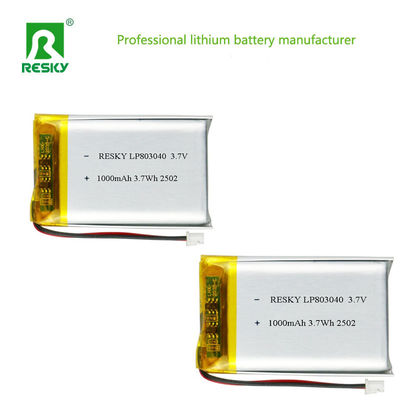

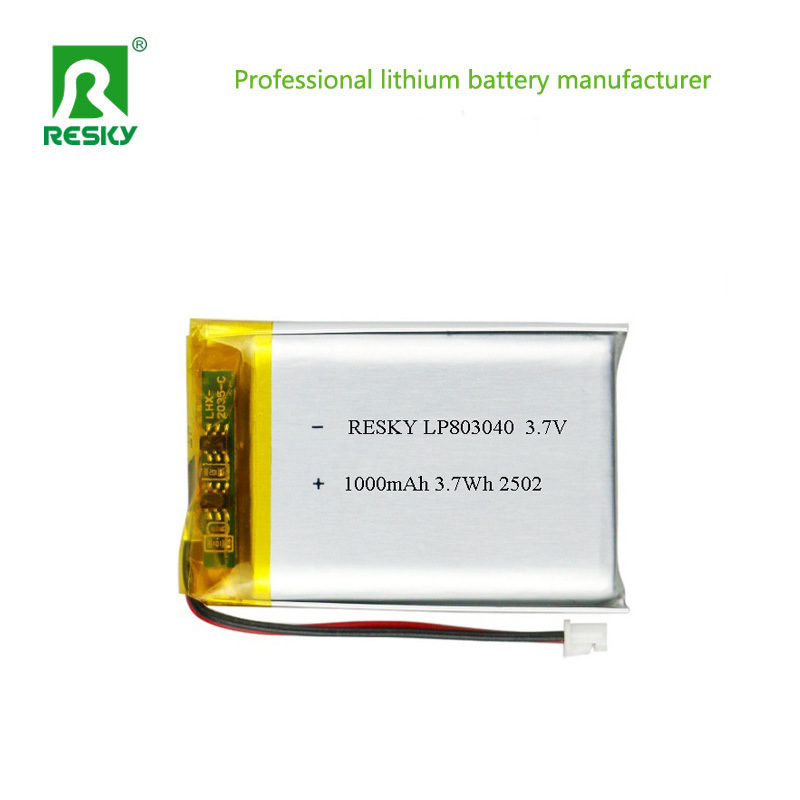

Square Li-polymer Battery LP803040 3.7V 1000mAh 3.7wh Pouch Power Lithium Ion Battery Cell

تمام دسته ها

لوازم RC

با ما تماس بگیرید

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

حالا تماس بگیرید

Square Li-polymer Battery LP803040 3.7V 1000mAh 3.7wh Pouch Power Lithium Ion Battery Cell

نام تجاری:	RESKY
شماره مدل:	LP803040
مقدار تولیدی:	100 قطعه
قیمت:	قابل مذاکره
جزئیات بسته بندی:	جعبه کاغذی
شرایط پرداخت:	Western Union ، T/T

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

گواهی:

CE, RoHS, MSDS, Un38.3

الکترولیت:

لی (nicomn) o2

ظرفیت اسمی:

1000 میلی آمپر ساعت

جریان شارژ:

حداکثر جریان تخلیه:

1 درجه سانتیگراد

19 گرم

مشخصات:

8*30*40 میلی متر

کد HS:

8507600090

قابلیت ارائه:

100000 قطعه در روز

گارانتی:

12 ماه

زندگی چرخه:

500 بار

قابلیت ارائه:

50000 قطعه در روز

برجسته کردن:

Square Li-polymer battery 1000mAh,3.7V lithium ion pouch cell,LP803040 power battery with warranty

3.7V lithium ion pouch cell

LP803040 power battery with warranty

توضیحات محصول

Square Li-polymer Battery LP803040 3.7V 1000mAh 3.7wh Pouch Power Lithium Ion Battery Cell

Product Specifications

Electrolyte	Li(Nicomn)O2
Nominal Capacity	1000mAh
Charging Current	0.2c
Max Discharging Current	1c
Weight	19g
Specification	83040mm
HS Code	8507600090
Supply Ability	100000PCS/Day
Warranty	12 months
Cycle life	500 times

Technical Details

Batteries: 3.7V 1000mAh LiPo battery
Charge voltage: 4.2V
Nominal voltage: 3.7V
Nominal capacity: 1000mAh (0.2C Discharge)
Charge current: Standard Charging: 0.5C, Rapid charge: 1.0C
Standard Charging method: 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
Charging time: Standard: 2.75 hours, Rapid: 2 hours
Max. charge current: 1.0C
Max. discharge current: 1.0C
Discharge cut-off voltage: 2.5V±0.25V (0.2C)
Operating temperature: Charging: 0°C~45°C, Discharging: 0°C~45°C
Storage temperature: -10°C~+45°C
Dimension: 40±0.5mm (L) × 30±0.5mm (W) × 8±0.2mm (T)
Drop Test: Passes 1m drop test twice onto concrete with no fire or leakage
Cycle life: ≥500 times

Low-Voltage vs High-Voltage Lithium Polymer Batteries

1. Main Difference: Voltage Platform and Energy Density

Low-voltage version: Typically refers to ternary lithium batteries with a 3.6V/3.7V voltage platform. Its full-charge cutoff voltage is generally 4.2V, and its discharge cutoff voltage is approximately 2.75V-3.0V.

High-voltage version: Typically refers to ternary lithium batteries with a 3.8V/3.85V voltage platform. Its full-charge cutoff voltage is higher, generally 4.35V or 4.4V, and its discharge cutoff voltage is also approximately 2.75V-3.0V.

At the same capacity (1000mAh), the high-voltage version delivers more actual electrical energy (Wh) according to the formula "Energy = Voltage × Capacity," providing longer single-charge usage time for devices.

2. Applicable Devices and Charging Requirements

Low-voltage version (4.2V cutoff): Suitable for devices with traditional designs whose charging management ICs only support a 4.2V full-charge cutoff voltage.

High-voltage version (4.35V/4.4V cutoff): Requires the device's charging management IC to support a higher cutoff voltage. Using incompatible batteries can lead to safety risks or reduced performance.

3. Materials and Cycle Life

Low-voltage version: The cathode material formulation is more mature, with cycle life typically reaching 500-800 cycles (capacity retention ≥80%).

High-voltage version: Cycle life is usually between 400-600 cycles (capacity retention ≥80%) due to material modifications for higher voltage.

Applications

Mobile Devices: Ideal for smartphones, tablets, and wearable devices like smartwatches and fitness trackers, offering high energy density in compact sizes.

Unmanned Aerial Vehicles (UAVs/Drones): Perfect for drones requiring lightweight, high-energy-density batteries for extended flight durations.

Electric Vehicles: Suitable for smaller EVs including electric scooters and bikes, benefiting from lightweight construction and high energy output.

Product Images
