بسته باتری لیتیوم پلیمری

Li-Ion Battery Cell 104050 3.7v 7.4v 2500mAh 9.25wh Rechargeable Li-Polymer Battery Pack

تمام دسته ها

لوازم RC

با ما تماس بگیرید

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

حالا تماس بگیرید

Li-Ion Battery Cell 104050 3.7v 7.4v 2500mAh 9.25wh Rechargeable Li-Polymer Battery Pack

نام تجاری:	RESKY
شماره مدل:	LP104050
مقدار تولیدی:	100 قطعه
قیمت:	قابل مذاکره
جزئیات بسته بندی:	صادرات استاندارد
شرایط پرداخت:	Western Union ، T/T

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

گواهی:

CE, RoHS, MSDS, Un38.3, IEC62133,ECT

ظرفیت اسمی:

2500 میلی آمپر ساعت

جریان شارژ:

جریان تخلیه مداوم:

حداکثر جریان تخلیه:

1 درجه سانتیگراد

27 گرم

گارانتی:

12 ماه

سرویس OEM:

مشخصات:

10*40*50 میلی متر

کد HS:

8507600090

ولتاژ کار:

4.2 ولت

قابلیت ارائه:

50000 قطعه در روز

برجسته کردن:

Li-Ion Battery Cell 104050 2500mAh,3.7v Rechargeable Li-Polymer Battery,7.4v Lithium Polymer Battery Pack

3.7v Rechargeable Li-Polymer Battery

7.4v Lithium Polymer Battery Pack

توضیحات محصول

Li-Ion Battery Cell 104050 3.7v 7.4v 2500mAh 9.25wh Rechargeable Li-Polymer Battery Pack

Product Specifications

NO.	Items	Specifications
1	Batteries	3.7v 2500mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	2500mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging:0°C ~45°C
12	Storage temperature	-10°C~ +45°C
13	Dimension	Length:50±2mm (not including tabs) Width:40±0.5mm Thickness:10±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500times

Key Advantages

Compact Design

Slim and compact form factor ideal for size-sensitive wearable and handheld devices.

High Energy Density

2500mAh nominal capacity with 9.25Wh energy density provides 6-12 hours of continuous power for small devices.

Temperature Adaptability

Wide operating temperature range supports discharge from -20℃ to 60℃.

Safety Features

Built-in overcharge, over-discharge, and short-circuit protection circuits with soft-pack structure for enhanced safety.

Long Cycle Life

Over 500 cycles under 0.5C charge/discharge conditions with ≥80% capacity retention.

Low Self-Discharge

Monthly self-discharge rate ≤3%, making it suitable for backup power applications.

Typical Applications

1. Smart Wearable and Health Monitoring Devices

Smartwatches/Bracelets

Portable Medical Devices

2. Small Digital and Entertainment Devices

Bluetooth Speakers/Headphones

Handheld Game Consoles/VR Accessories

Action Cameras/Drones

3. Outdoor and Thermal Equipment

Heated Gloves/Protective Gear

Outdoor Lighting Equipment

4. Smart Home and IoT Terminals

Smart Door Lock Backup Power

Wireless Sensors/Surveillance Cameras

Small Home Appliances

5. Industrial and Specialized Fields

Instruments (multimeters, electronic tags)

Emergency Equipment

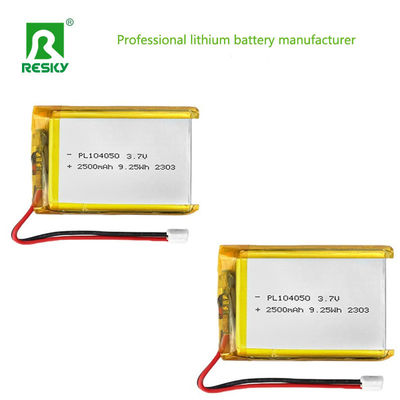

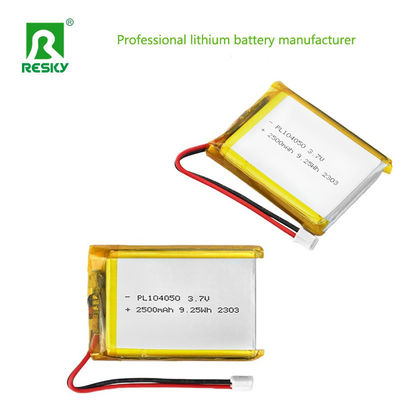

Product Images
