Samsung INR18650-35E 10s6p 36v 21Ah Lithium Ion Battery Pack For 750W Electric Scooter

تمام دسته ها

لوازم RC

با ما تماس بگیرید

Mrs. Alice

alice@szresky.com

0086 13530058480

حالا تماس بگیرید

Samsung INR18650-35E 10s6p 36v 21Ah Lithium Ion Battery Pack For 750W Electric Scooter

نام تجاری:	RESKY
شماره مدل:	RSK-3621
مقدار تولیدی:	10PCS
قیمت:	قابل مذاکره
جزئیات بسته بندی:	بسته های صادر کننده استاندارد/جعبه سازمان ملل
شرایط پرداخت:	وسترن یونیون، T/T

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

گواهی:

CE,RoHS,MSDS,Un38.3

الکترولیت:

Li(Nicomn)O2

ساختار:

10s6p

نوع سلول:

سلولهای باتری INR18650-35E

موتور:

750 وات

ولتاژ قطع شارژ:

42 ولت

جریان شارژ:

تخلیه ولتاژ قطع:

27.5 ولت

جریان تخلیه مداوم:

حداکثر جریان تخلیه:

756 وات ساعت

قابلیت ارائه:

500 عدد در روز

برجسته کردن:

18650 36v Lithium Ion Battery Pack,21Ah 36v Lithium Ion Battery Pack

21Ah 36v Lithium Ion Battery Pack

توضیحات محصول

Product Description

Samsung INR18650-35E 10s6p 36v 21Ah Lithium Ion Battery Pack For 750W Electric Scooter

Specification:

Product name	36V 21Ah
Model	RSK-3621
Rated Capacity	21Ah
Nominal Voltage	36V
Over discharge protection voltage	30V±0.05V
Over charge protection voltage	42V±0.05V
AC Impedance New Cell Max.(mΩ)	≤100 mΩ
Maximum Continuous Charge Current	≤5A adjustment
Maximum Continuous Discharge Current	≤20A adjustment
Maximum Pulse discharge current	≤30A adjustment
Operation Temperature Range	Charge: 0~45°C,Discharge: -20~60°C
Storage Temperature Range	Less than 1 year: -20~25°C
Storage Temperature Range	Less than 3 months: -20~40°C
Storage Temperature Range	Less than 30 Days: -25°C~45°C
Storage Temperature Range	Less than 90 Days: -25°C~30°C
Weight	Approx 3.5kg
Cycle Characteristic	500 times

Various cell brand available:

Samsung INR18650-35E 10s6p 36v 21Ah Lithium Ion Battery Pack For 750W Electric Scooter 0

Various cell type available:

1. Domestic ICR18650 battery cell(2600mAh, 2900mAh, 3400mAh, 3500mAh);

Domestic ICR21700 battery cell(4000mAh, 4500mAh, 5000mAh);

2. Panasonic: NCR18650F, NCR18650PF, NCR18650BE, NCR18650BD, NCR18650B, NCR18650BF, NCR18650GA;

3. Samsung cell available:

Samsung	INR1865035ET	3500	10A	3C
Samsung	INR1865025RM/RT	2500	20A	8C
Samsung	INR1865030Q/QM	3000	15A	5C
Samsung	INR2170050E	4800	10A	2C
Samsung	INR2170040T	4000	30A	7C
Samsung	INR2170050GB	5000	10A	2C
Samsung	INR2170050G	5000	10A	2C
Samsung	INR2170050S	5000	35A	7C

Various assembling way:

Various series or parrallels assembling way;

Voltage range for li-ion battery pack: 12V/24V/48V/60V/72V ect;

Voltage range for Lifepo4 battery pack: 12.8V/25.6V/51.2V/64V ect;

Samsung INR18650-35E 10s6p 36v 21Ah Lithium Ion Battery Pack For 750W Electric Scooter 1

Samsung INR18650-35E 10s6p 36v 21Ah Lithium Ion Battery Pack For 750W Electric Scooter 2

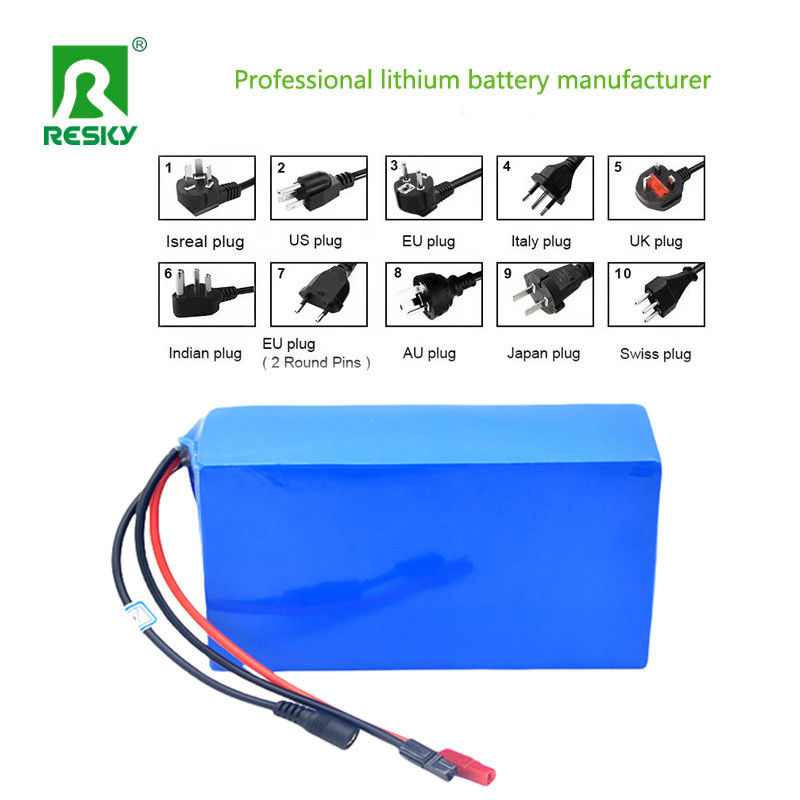

Input & output plug:

Samsung INR18650-35E 10s6p 36v 21Ah Lithium Ion Battery Pack For 750W Electric Scooter 3

Various application:

Samsung INR18650-35E 10s6p 36v 21Ah Lithium Ion Battery Pack For 750W Electric Scooter 4

Samsung INR18650-35E 10s6p 36v 21Ah Lithium Ion Battery Pack For 750W Electric Scooter 5

Why choose us?

1. We accept small quantity order or big quantity order;

2. We could accept any customized lithium battery pack orders;

3. We could accept orders with different requirements;

4. We guarantee 100% QC pass before delivery;

5. Fast production time, we have enough stock cells;

6. Fast solution confirmation, and quotation confirmation;

Factory pictures:

Battery cell warehouse:

Samsung INR18650-35E 10s6p 36v 21Ah Lithium Ion Battery Pack For 750W Electric Scooter 6

Battery shell warehouse:

Automatic cylindrical battery cell sorting machine:

Assembled battery pack:

Completed battery in aging:

Samsung INR18650-35E 10s6p 36v 21Ah Lithium Ion Battery Pack For 750W Electric Scooter 11

Workshop picture:

Samsung INR18650-35E 10s6p 36v 21Ah Lithium Ion Battery Pack For 750W Electric Scooter 12

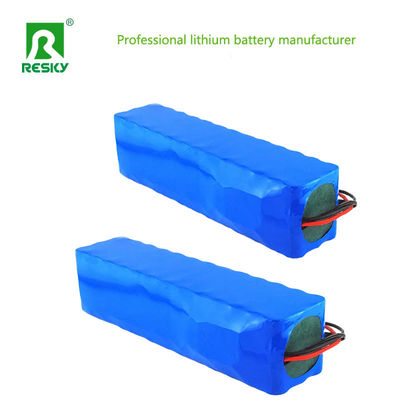

Battery Pictures:

Samsung INR18650-35E 10s6p 36v 21Ah Lithium Ion Battery Pack For 750W Electric Scooter 13

Samsung INR18650-35E 10s6p 36v 21Ah Lithium Ion Battery Pack For 750W Electric Scooter 14

Samsung INR18650-35E 10s6p 36v 21Ah Lithium Ion Battery Pack For 750W Electric Scooter 17
